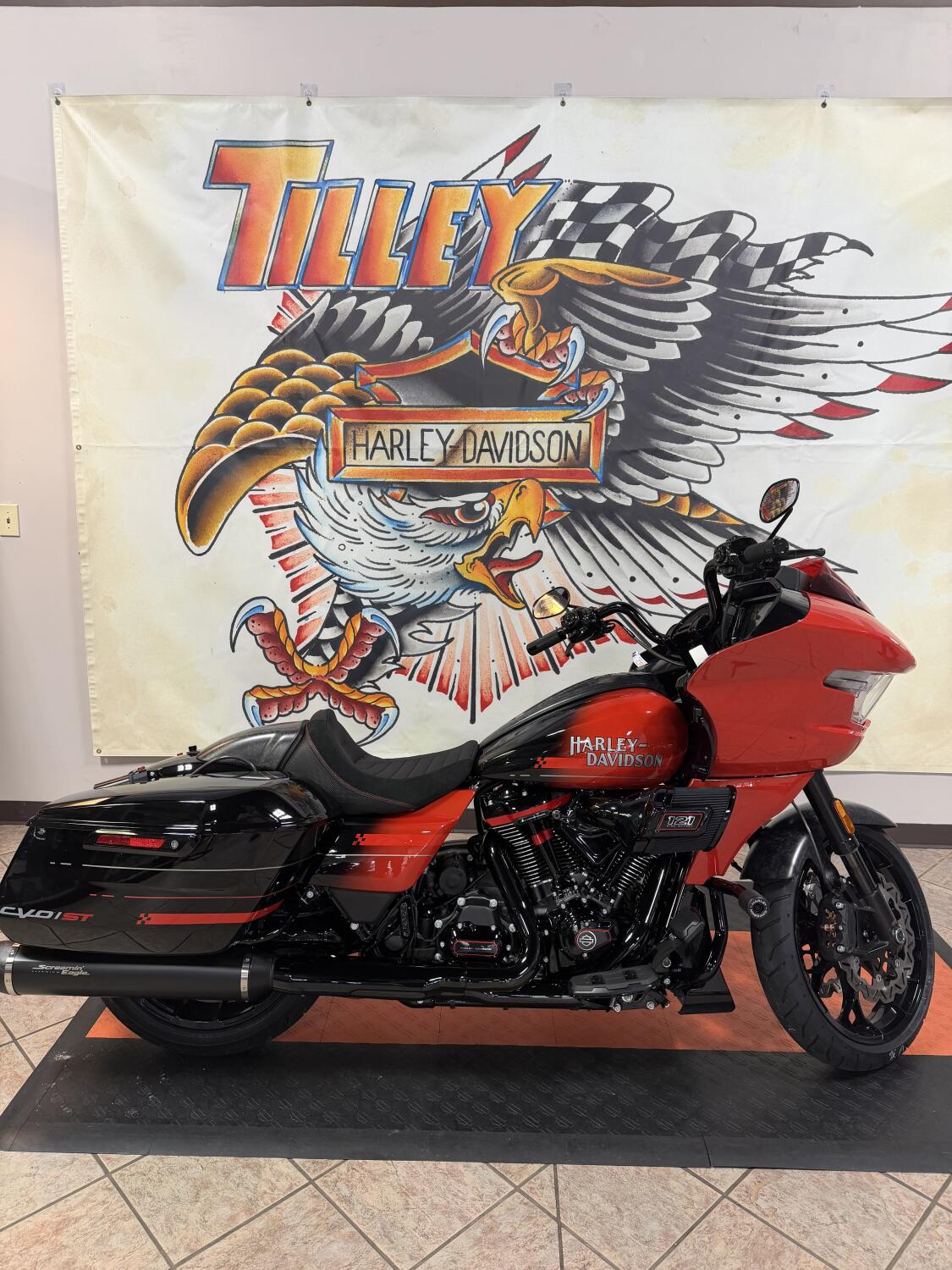

The 2026 Harley-Davidson CVO™ Road Glide® ST in the Citrus Heat Re-Entry colorway is the most aggressive iteration of this "race-inspired bagger." Designed to channel the spirit of the MotoAmerica Mission King of the Baggers series, it serves as a high-performance, factory-built machine focused on speed and agility.

Aesthetic Highlights

  • Citrus Heat Re-Entry Finish: This exclusive paint scheme is defined by a vibrant, race-inspired graphic that runs across the fairing and tank. Unlike the more subtle color options, this finish is specifically designed to announce the bike's presence and performance-focused attitude.

  • Performance Detailing: The bike features forged carbon fiber components—including the front fender, seat cowl, and console—which provide both a high-end, technical look and significant weight reduction.

  • Race-Bred Stance: It sports tall risers with a factory "moto-bar" setup, creating an aggressive, upright riding position that shifts the rider into a more "attack-ready" stance compared to traditional touring models.

Performance Specs

At its core, this machine is engineered for the track as much as the street:

  • Milwaukee-Eight® 121 High Output Engine: Unlike standard touring models, this High Output version skips Variable Valve Timing (VVT) to prioritize top-end power, delivering 127 horsepower and 145 lb-ft of torque, with an elevated redline of 5,900 RPM.

  • Weight Reduction: The bike utilizes titanium-capped mufflers, a carbon fiber body kit, and lightweight materials throughout the chassis to improve handling and responsiveness.

  • Suspension & Braking: It is equipped with fully adjustable Showa® inverted forks and remote-reservoir rear shocks for precision damping, paired with Brembo® radial-mounted brakes for fade-resistant stopping power.

  • Electronics: It features specialized "Track" and "Track+" ride modes, which fine-tune power delivery, engine braking, and traction control to match the aggressive capabilities of the platform.

Connected Experience

Despite its "ruthless" performance focus, it retains a modern cockpit integrated with the Skyline™ OS. This system powers a 12.3-inch TFT display, providing factory navigation, rider mode selection, and suspension telemetry, all while backed by a Rockford Fosgate® Stage II audio system designed to be heard clearly even at high speeds.

Specifications

  • Dimensions
    add remove
    • Length:
      94.9 in
    • Seat height, unladen:
      28.3 in
    • Rake (steering head):
      26
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      180/55B18 M/C 80H
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      800 lbs
    • Weight, in running order:
      838 lb
    • Luggage capacity – volume:
      2.42 cu ft (0.069 m3)
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 121 High Output
    • Bore:
      4.1 in
    • Stroke:
      4.6 in
    • Displacement:
      120.64 in3
    • Compression ratio:
      11.4:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      145.3 ft-lb
    • Engine torque (RPM):
      4000
    • Horsepower:
      127 HP / 95 kW @ 4900 rpm
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      44 mpg (5.3 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Belt, 30/68 ratio
    • Gear ratios (overall) 1st:
      10.233
    • Gear ratios (overall) 2nd:
      7.093
    • Gear ratios (overall) 3rd:
      5.268
    • Gear ratios (overall) 4th:
      4.266
    • Gear ratios (overall) 5th:
      3.635
    • Gear Ratios (overall) 6th:
      3.067
  • Chassis
    add remove
    • Front fork:
      1.9 in Inverted 1x1 Front Forks with adjustable preload, compression damping and rebound damping
    • Rear shocks:
      Emulsion suspension with adjustable preload, compression damping and rebound damping
    • Wheels, front type:
      Black, 7-spoke Cast Aluminum
    • Wheels, rear type:
      Black, 7-spoke Cast Aluminum
    • Brakes, type:
      Wave Style, dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      4-piston fixed dual radial mounted front, and single axial mounted rear
  • Infotainment
    add remove
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      125
    • Speakers:
      2
    • Speaker size:
      Two 6.5 in fairing speakers
    • AM:
      Standard
    • FM:
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
    • Text-to-Speech (TTS) languages:
      Same as Languages list
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset
